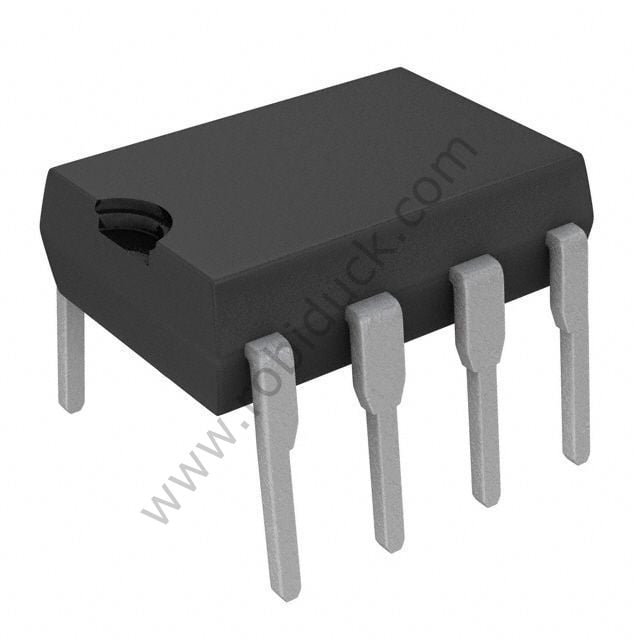

LM393
|
Status |
Active |
|
Amplifier Type |
COMPARATOR |
|
Average Bias Current-Max (IIB) |
0.2500 µA |
|
Bias Current-Max (IIB) @25C |
0.2500 µA |
|
Input Offset Voltage-Max |
5000 µV |
|
JESD-30 Code |
R-XDIP-T8 |
|
Number of Functions |
2 |
|
Number of Terminals |
8 |
|
Operating Temperature-Min |
-20 Cel |
|
Operating Temperature-Max |
85 Cel |
|
Output Type |
OPEN-COLLECTOR |
|
Package Body Material |
UNSPECIFIED |
|
Package Code |
DIP |
|
Package Equivalence Code |
DIP8,.3 |
|
Package Shape |
RECTANGULAR |
|
Package Style |
IN-LINE |
|
Power Supplies (V) |
5 |
|
Qualification Status |
Not Qualified |
|
Response Time-Nom |
1400 ns |
|
Seated Height-Max |
4.31 mm |
|
Sub Category |
Comparator |
|
Supply Current-Max |
2.5 mA |
|
Supply Voltage Limit-Max |
36 V |
|
Supply Voltage-Nom (Vsup) |
5 V |
|
Surface Mount |
NO |
|
Technology |
BIPOLAR |
|
Temperature Grade |
OTHER |
|
Terminal Form |
THROUGH-HOLE |
|
Terminal Pitch |
2.54 mm |
|
Terminal Position |
DUAL |
|
Length |
9.2 mm |
|
Width |
7.62 mm |
